KLINGER Ballostar & Monoball Valves
Lower Total Cost of Ownership for sealing solutions, valves and fluid monitoring
Ball valves are highly versatile in terms of fluid handling and are among the most used valves in the industry. Ball valves feature a quick closing ¼ turn, which is usually achieved by means of a lever, thus allowing for simple operation.
KLINGER ball valves meet the most demanding specifications and are used in a wide range of industries. At KLINGER, your ball valve manufacturer of choice, we focus on the highest quality, reduced maintenance requirements and global service. Lastly, our fully automated production of ball valves with up to DN 1000 makes us suitable for all even large pipe sizes.
KLINGER Ball valves are available in a varied styles and materials for your unique application.
Product overview
- Hot water, steam, and heat transfer oils: in power plants and district heating supply
- Viscous media: e.g. bitumen (oil industry and refineries), molasses (breweries)
- Liquid and gaseous media in refineries and tank farm construction (hydrocarbons, fuels, and oils)
- Liquid gas and natural gas
- Compressed air supply in the industry
- Dusty media: cement in plants and on silos
- In the paper and textile industry: dye liquor, digester liquor
- In the chemical industry: acid-resistant ball valves for chemical solutions (acids, bases, etc.)
Ballostar and Monoball Range Ball Valves
KLINGER Fluid Control offers product ranges of ball valves which differ in three main features: nominal width range, construction and available end connection. Overview of the available product ranges:
- Monoball KHO: one piece ball valves, DN 15-250, flange, threaded connection, welding ends
- Ballostar KHI: 2-piece (optionally fully welded), DN 150-1000, flange or weld ends connections
- Ballostar KHA: 3-piece ball valves, DN 15-125, flange, threaded connection, welding ends
- Ballostar KHE: 2-piece ball valve, DN 15–200, ½″–8″, flange connections

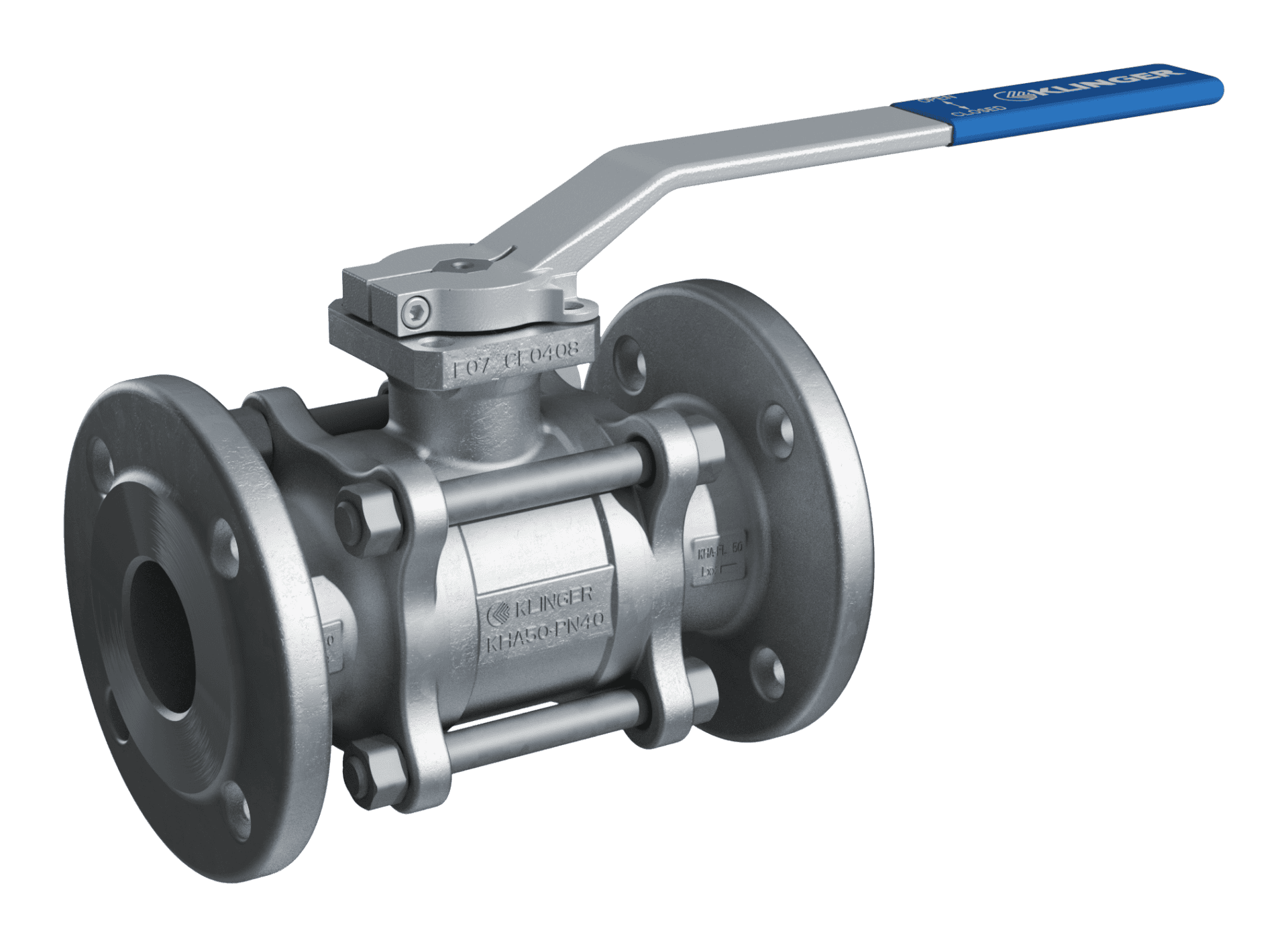

BALLOSTAR KHA
The multi-talented valve – one product for many applications. KLINGER Ballostar KHA ball valves offer certified fire-safe reliability and a modular system of three connection types, six sealing elements and three stuffing box designs.

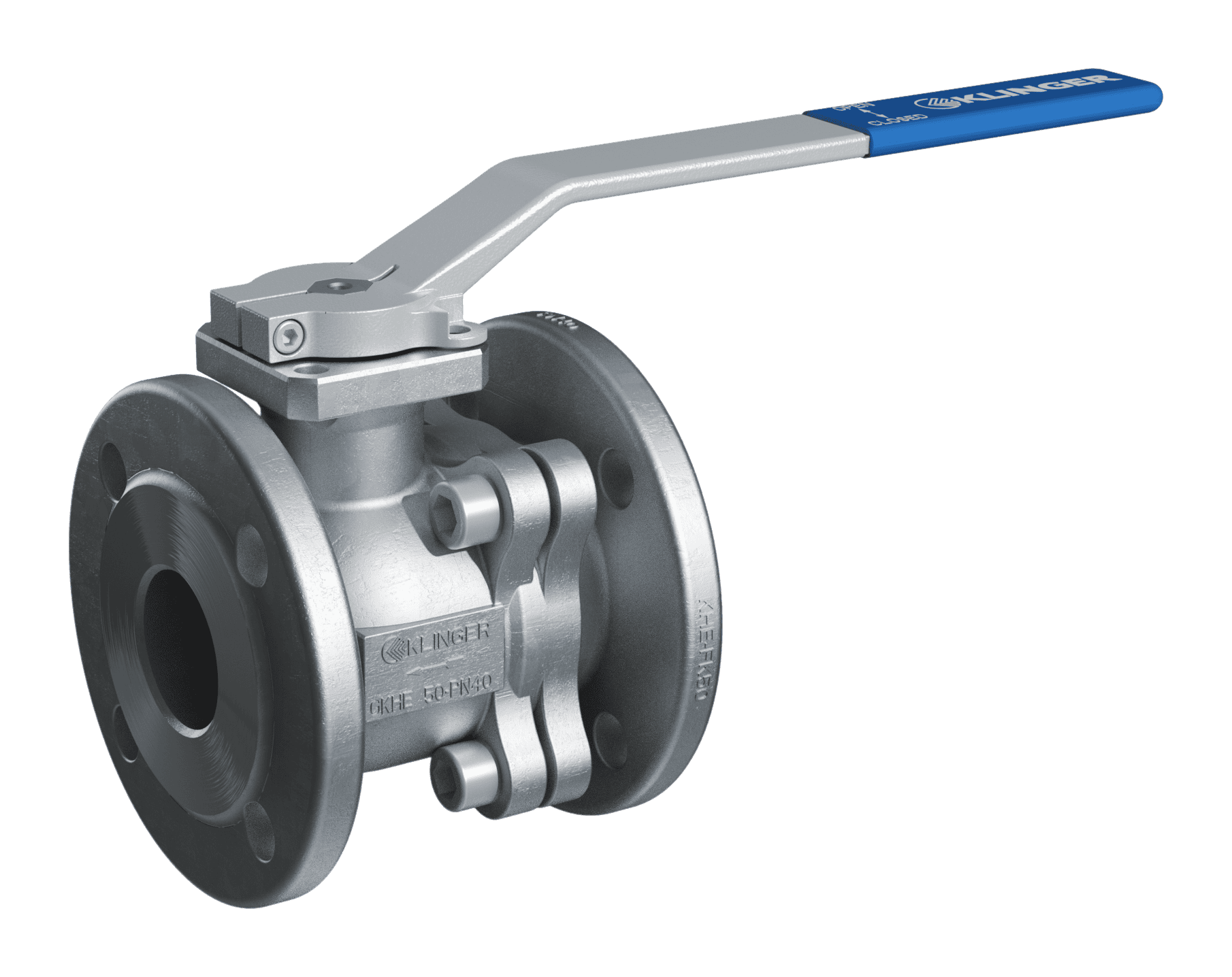

BALLOSTAR KHE
Two-piece flanged ball valve optimised for the process industry. The innovative KLINGER Ballostar KHE body minimises sealing areas to reduce external leakage risk, with a modular choice of operating stems and sealing elements.

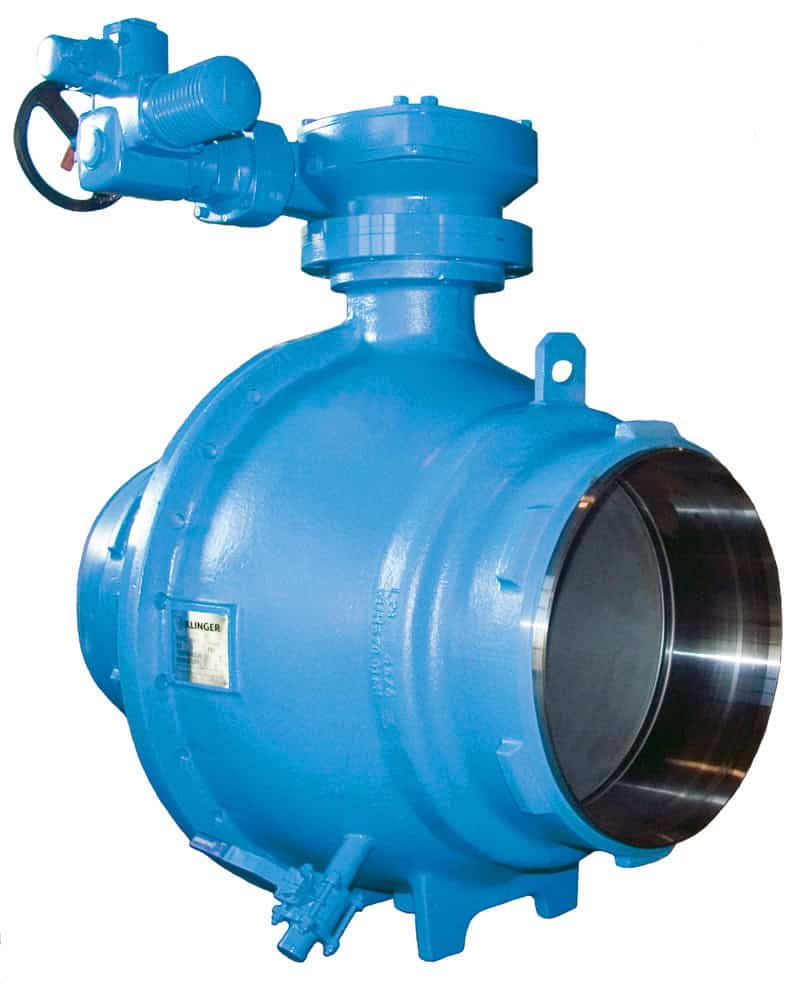

BALLOSTAR KHI
Decades of reliability with a unique sealing mechanism. KLINGER Ballostar KHI ball valves meet future criteria for tensile, compressive and bending stress, and allow pressure release when closed through integrated test and drain valves.
MONOBALL KHO
Multifunctional ball valve for HVAC and custom solutions. The KLINGER Monoball KHO is a robust, maintenance-free, fully welded valve for district heating, heating and air conditioning systems and plant construction.
