KLINGER INTEC Ball Valves
Lower Total Cost of Ownership for sealing solutions, valves and fluid monitoring
Industrial ball valves are important components in process engineering systems of all main sectors for the maintenance of transport and production processes. The various applications require shutting off, throttling and regulating material flows (solid-containing, liquid or gaseous) in piping systems up to opening and closing processes in piping systems.
KLINGER have employed their detailed technical knowledge and application experience for the differentiated design and manufacturing of the industrial ball valves to effectively manage the occasional extreme operating conditions (pressure, temperature, medium) as well as safety requirements.
INTEC Ball Valves – Highlights
- Equipped with all advantages of series INTEC K200.
- Two-piece split body or three-piece split body design.
- Extreme long-life acc. high precision bearing of the stem.
- Optimized arrangement of the bearing forces.
End connections / Face to face dimensions
DIN design: FTF dimensions acc. to EN 558, GR.1, GR.2, GR.27 / Flanges acc. to EN 1092
ANSI design: FTF dimensions acc. to ANSI B 16.10 / Flanges acc. to ANSI B 16.5
Materials
Stainless steel, Carbon steel and special materials like Duplex, Super Duplex, Hastelloy B2/C4/C276, Titanium, Zirconium, Monell, Nickel etc.
General Information
The specified pressure and temperature values showing the maximum range for orientation only. For the necessary design please note the pT diagram in the respective data sheet. Main criterion of the material code is the basic material of body and cap. The performance and service life of KLINGER valves depend largely on proper storage and fitting – factors beyond the manufacturer’s control. We can, however, vouch for the excellent quality of our products.

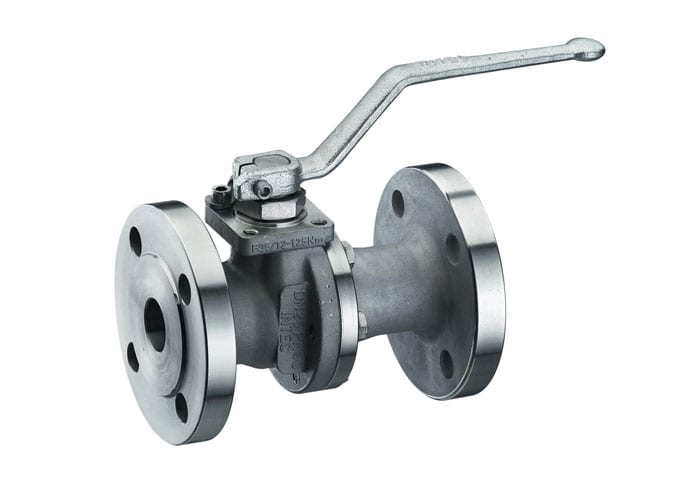

INTEC K200
High-end two-piece flanged ball valves for the chemical industry, with proven design and perfect technical functionality. DN 15–200, soft-seated floating ball, full bore, Fire-Safe to API 607 and SIL 2 classified.
INTEC K200-K
Wafer type ball valve of the modular INTEC system – the favourite for special materials in chemical plants. Face-to-face to EN 558, top flange to ISO 5211, Fire-Safe to DIN EN ISO 10497.
INTEC K204-S-D
Maintenance-free steam ball valve for the safe relaxation of steam-loaded elastomer hoses, increasing the life of steam hoses. Two-piece split body, soft-seated floating ball in stainless steel, -10 °C to +210 °C.

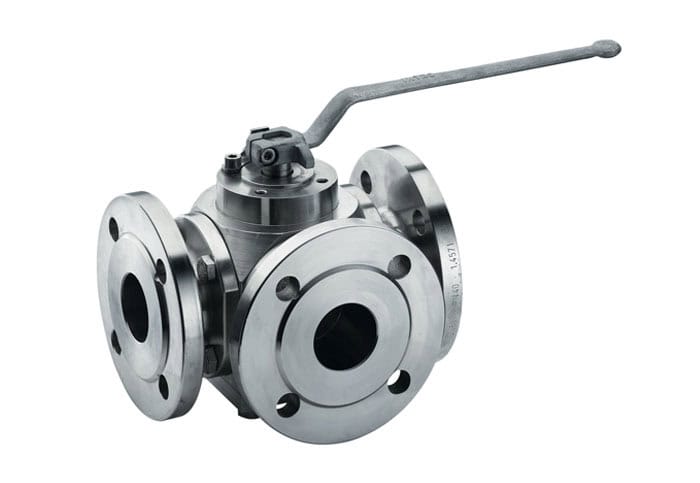

INTEC K400
Multiple-way ball valve of the modular INTEC system for 3-, 4- or 5-way applications. Full bore T- or L-bore, top flange to ISO 5211, in stainless steel, carbon steel or special materials such as Duplex and Hastelloy.

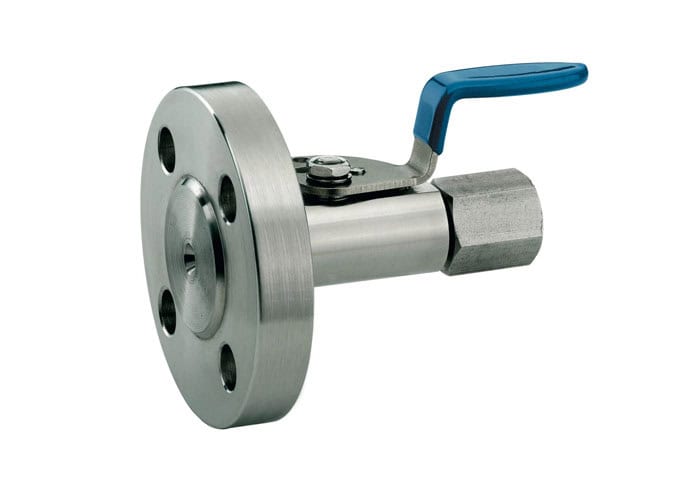

INTEC K600
Stainless steel ball valves for pressure gauges and measurement lines. Pressure gauge connection to DIN 16284 or threaded variants, minimised dimensions and safe pressure relief of the gauge, with optional vent bore or test port.

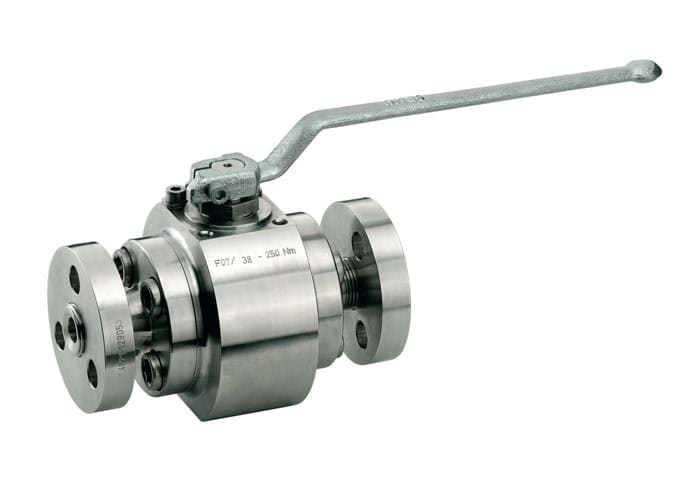

INTEC K811
INTEC K811 three-piece high-pressure ball valve of the modular INTEC system. High precision bearings and spring-loaded seat rings on both sides ensure safe handling in all high pressure applications.
