KLINGER Piston Valves
Lower Total Cost of Ownership for sealing solutions, valves and fluid monitoring
Piston valves stand for excellent industry performance with their minimum maintenance requirements and production savings. KLINGER piston valves are characterized by a system of seals and ring that ensures tightness to atmosphere and thus prevents environmental contamination.
KLINGER has been at the forefront of piston valve technology since 1922. Featuring different types of connections – flanged, threaded, butt and socket weld ends – and both DIN and ANSI-compliant standards, KLINGER piston valves complete the wide range of KLINGER’s industrial valves.
Features – Piston Valves KVN
- PN 16/40/63, Class 150/300
- DN 15-200, 1/2″-8″
- Material: grey cast iron, nodular cast iron, cast steel, stainless steel
- Temperature -10 °C to +400 °C
- Design: flanges, threaded connections, butt and socket weld ends
Product Advantages – Piston Valves KVN
- Excellent control characteristics
- Low maintenance
- Reliably tight in the bore and to atmosphere in accordance with EN 12266-1 – leakage rate A
- Suitable for steam condensate-alternating operation as well as temperature shock operations
- Special sealing elements for highest actuation count
- No erosion on sealing surface
- Revisable without requiring removal from pipe system
- Fire Safe
- Automatable
KVMN 1/2″-2″ SLEEVED DESIGN
KLINGER KVMN sleeved piston valve with two elastic KX-GT valve rings for reliable sealing, excellent control characteristics and a Fire Safe design, from 1/2″ to 2″.

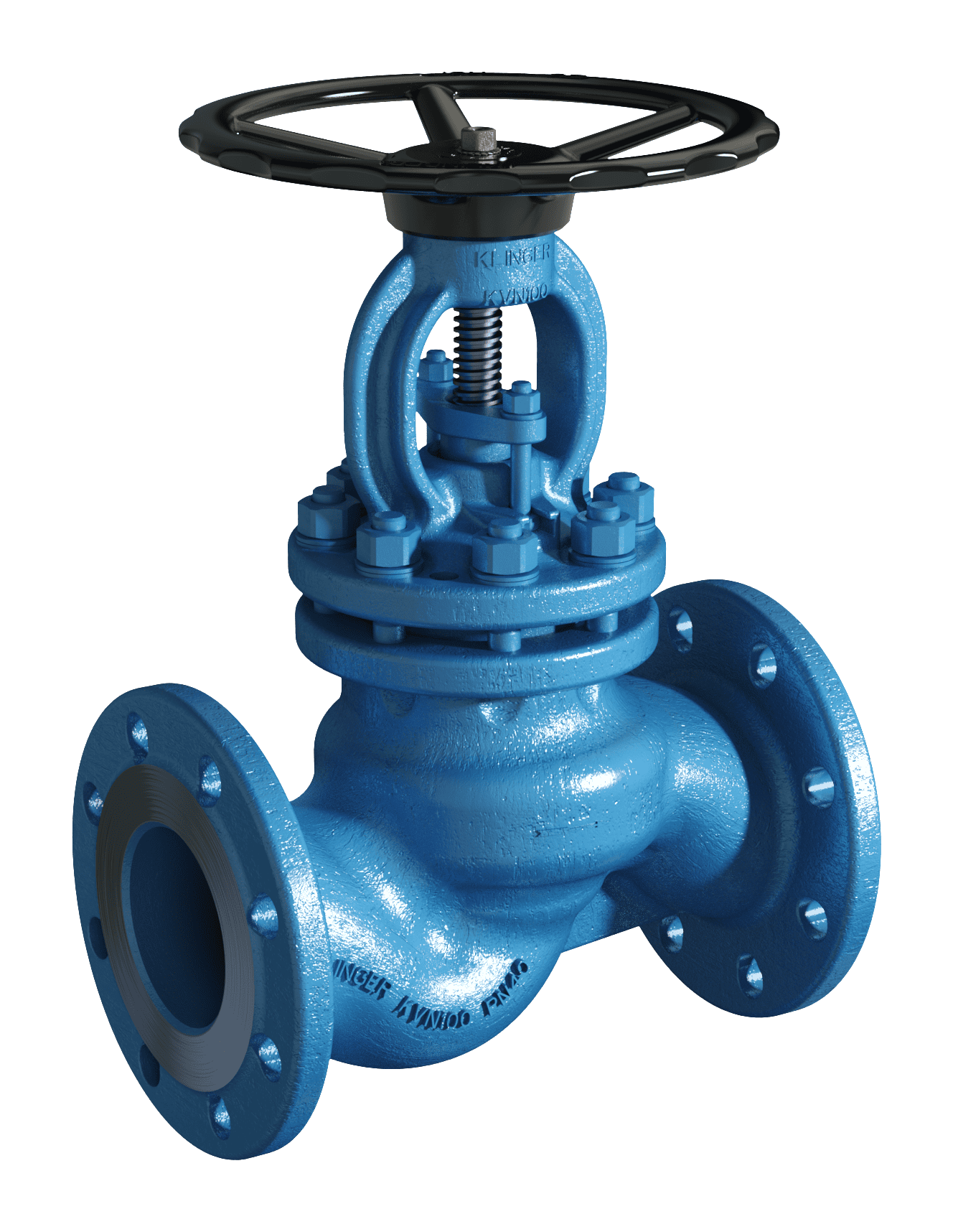

KVN 2 1/2″-8″ ANSI DESIGN
Class 150/300 piston valve to ANSI B16.10. Piston valve with bore, sealing via two elastic KX-GT valve rings, excellent control characteristics and Fire Safe design. Cast steel A-216 WCB, -10 °C to +400 °C.

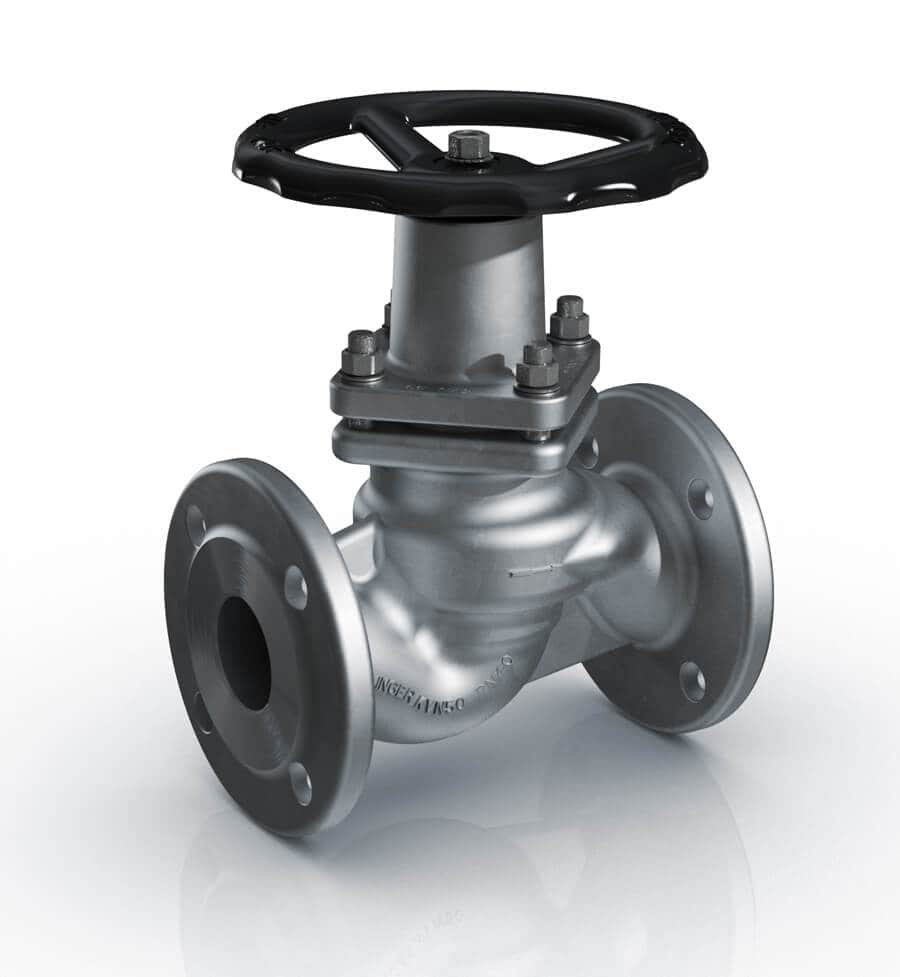

KVN DN 15-50 FLANGE DESIGN
KLINGER KVN DN 15-50 flanged piston valve with straight-through flow, Fire Safe performance and reliable sealing via two elastic KX-GT valve rings, for -10 °C to +400 °C.

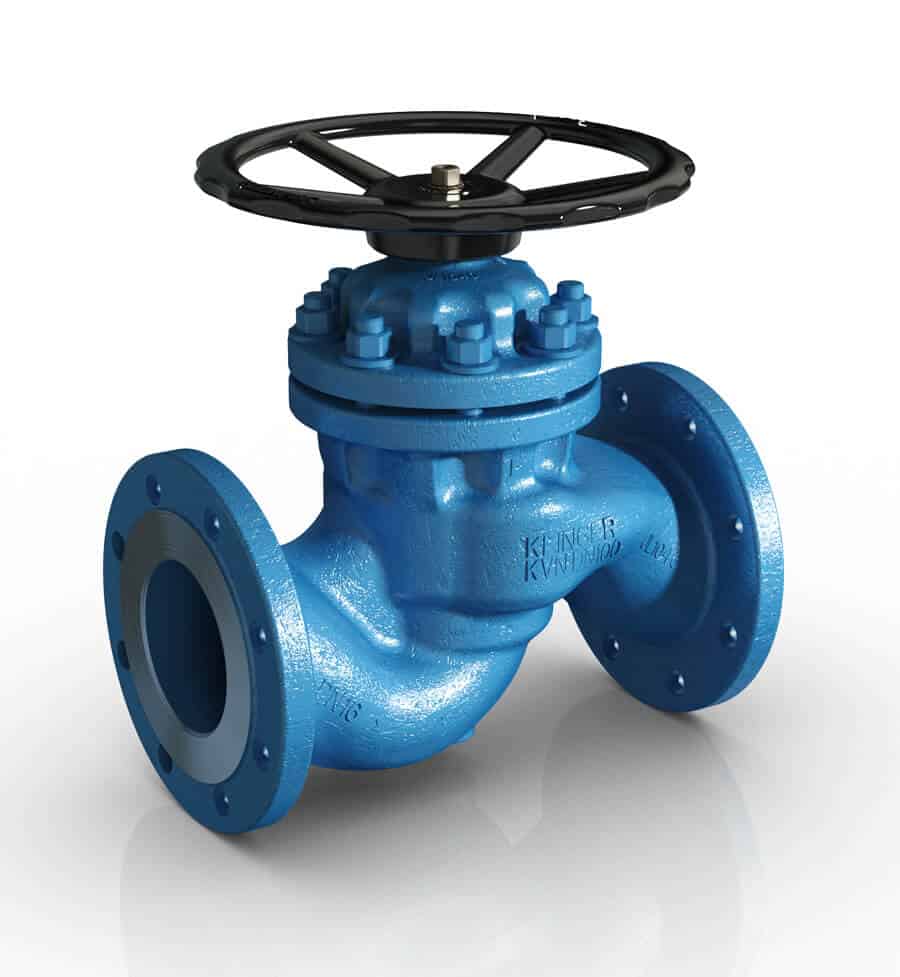

KVN DN 65-150 FLANGE DESIGN
KLINGER KVN DN 65-150 flanged piston valve with bore and two elastic KX-GT valve rings for reliable sealing, excellent control characteristics and a Fire Safe design.

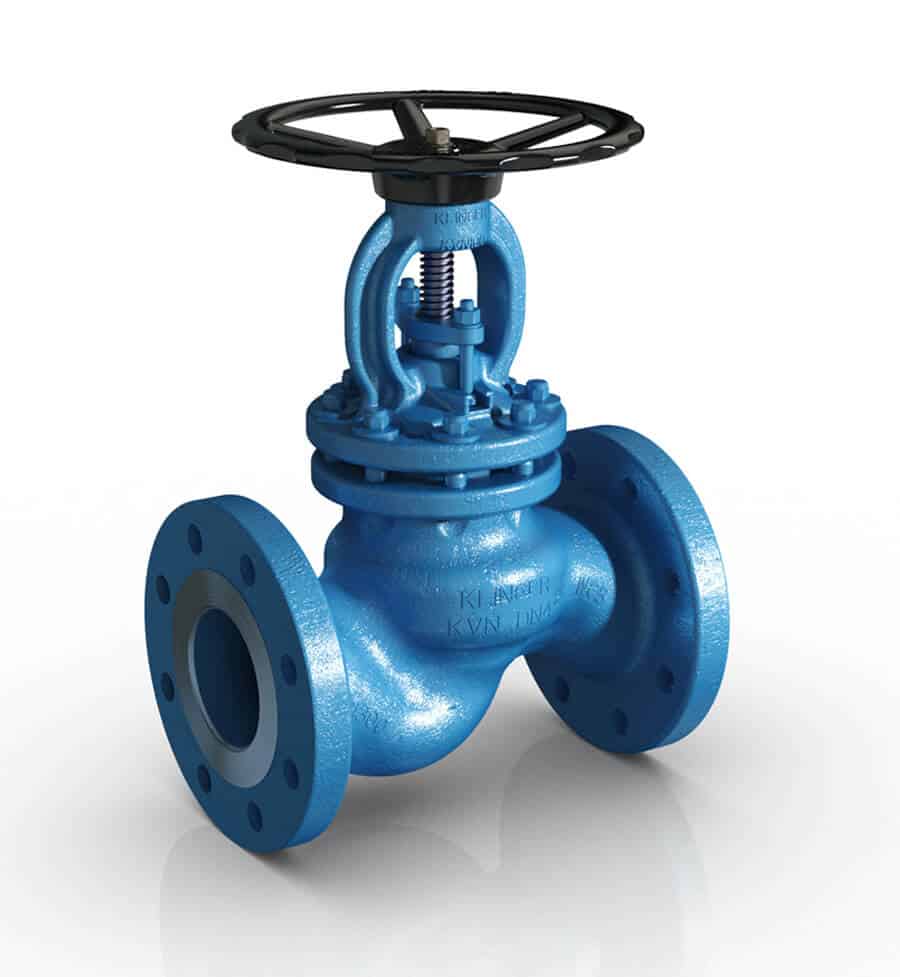

KVN DN 65-200 FLANGE DESIGN
Pressure-balanced piston valve with bore, sealing via three elastic KX-GT valve rings, excellent control characteristics and Fire Safe design. Flanged to EN 1092, in grey cast iron, nodular cast iron or cast steel, -10 °C to +400 °C.

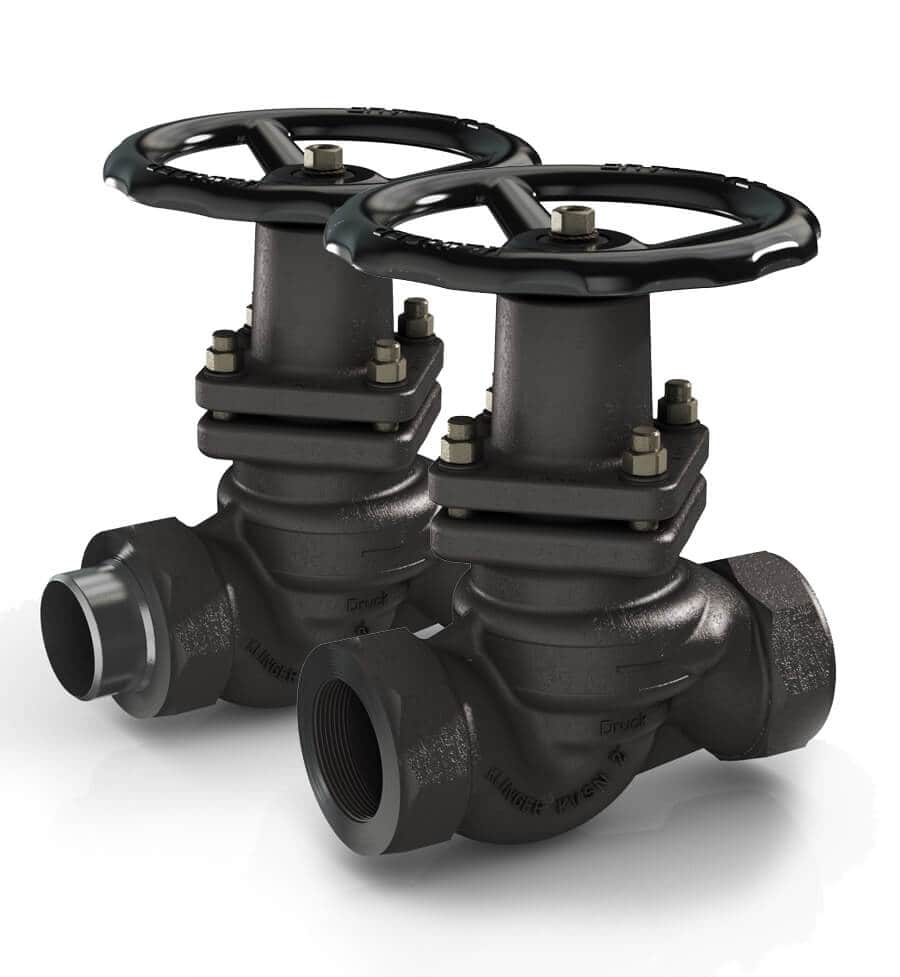

KVSN 1/2″-2″ SOCKET WELD ENDS
The KLINGER KVSN 1/2″-2″ welded-end piston valve uses two elastic KX-GT valve rings for reliable sealing, excellent control and fire-safe performance. Its cast steel construction and KLINGER-standard dimensions support service from -10°C to +400°C.

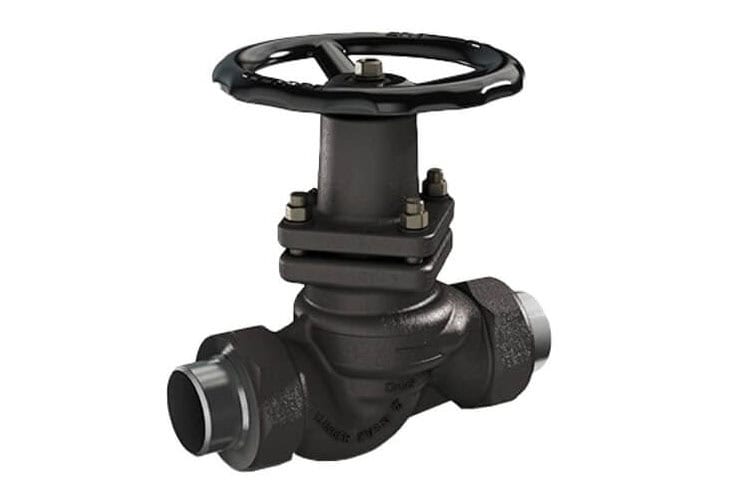

KVSN DN 15-50 BUTT WELD ENDS PISTON VALVES
The KLINGER KVSN DN 15-50 butt-weld piston valve uses two elastic KX-GT valve rings for reliable sealing, excellent control and fire-safe performance. Its cast steel construction and KLINGER-standard dimensions support service from -10°C to +400°C.
