KLINGER Graphite Laminate Gasket Sheet Materials
Lower Total Cost of Ownership for sealing solutions, valves and fluid monitoring
KLINGER supplies the broadest portfolio of graphite laminates in the industry built based on over 35 years of experience with customer needs for OE and MRO (Maintenance, Repair and Operations) applications. All our processes, equipment and products are developed inhouse.
Graphite laminate gaskets are suitable for temperatures between -200 °C and up to 550 °C and offer resistance against a broad range of chemicals. Fitted with an anti-stick finish specifically developed for this purpose, KLINGER graphite laminate gasket materials are easy to remove from the flange – even after exposure to increased temperature levels.
Features
- Coatings – Anti-stick, Polymer, PSA with release paper
- Foil Grades – High purity (nuclear), standard and economy, high temperature
- Inserts:
- Flat, perforated, stretch
- Thickness 0.1, 0.05
- Metallic, non-metallic
Certified products
Our products are amongst the most approved and certified products within the industry such as:
- DNV GL
- DVGW
- KTW
- BAM conform
- TA-Luft
- Fire safe
We deliver certified and trusted products worldwide and KLINGER AG is EN ISO 9001, ISO 14001 certified.
Benefits
- Range of gasket thickness for imperfect and sensitive flange conditions.
- Anti-stick, PSA for high pressure challenges.
- Thickness grade selection to minimize leakage.
- Economy grades for customers facing cost pressure.
- Easy handling because of the range of insert types and multiple layers.
Dimensions of the standard sheets
- Sizes: 1500 x 1500 mm
- Thicknesses: 1.0 mm, 2.0 mm, 3.0 mm
- Tolerances: Thickness ±5 %
- Length: ±5 mm, Width ±5 mm
Note: Other graphite qualities, thicknesses and sizes on request.

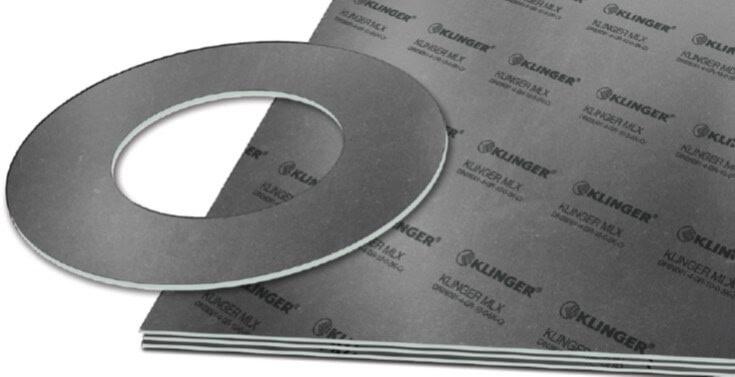

KLINGER Graphite Laminate MLX
Graphite gasket sheet with a premium multilayer structure of high-purity graphite foils (> 99.85 %) and smooth stainless steel foils, giving six times the rigidity and handleability of conventional foil-reinforced graphite gaskets.

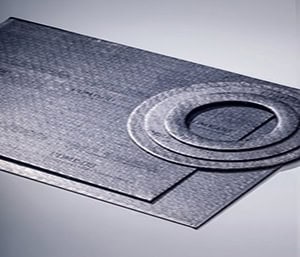

KLINGER Graphite Laminate PDM
The more highly compressed pure graphite gasket sheet with two rough sheet metal inserts, for temperatures up to 450 °C. Glueless and free from resins, impregnations and organic compounds.

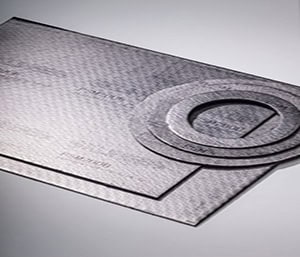

KLINGER Graphite Laminate PSM
Pure graphite gasket material with a rough sheet metal insert. Glueless expanded graphite with a 0.1 mm tanged stainless steel insert, free from resins and organic compounds, with stable properties over the whole temperature range.

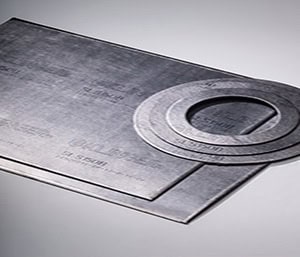

KLINGER Graphite Laminate SLS
Pure graphite gasket sheet with a smooth stainless steel insert, especially suitable for weak flanges at high temperatures up to 450 °C. Adhesive is kept below 1 % of the graphite for uniform distribution.
KLINGER Graphite Laminate TSM
TA-Luft gasket with reduced leakage rate for high temperatures up to 450 °C. Glueless impregnated expanded graphite with a 0.1 mm tanged stainless steel insert and stable physical properties over the whole temperature range.
KLINGER Graphite Laminate XSM
High temperature gasket material for temperatures up to 550 °C. Glueless, oxidation-protected expanded graphite with a 0.1 mm tanged stainless steel insert, free from resins, impregnations and organic compounds.
